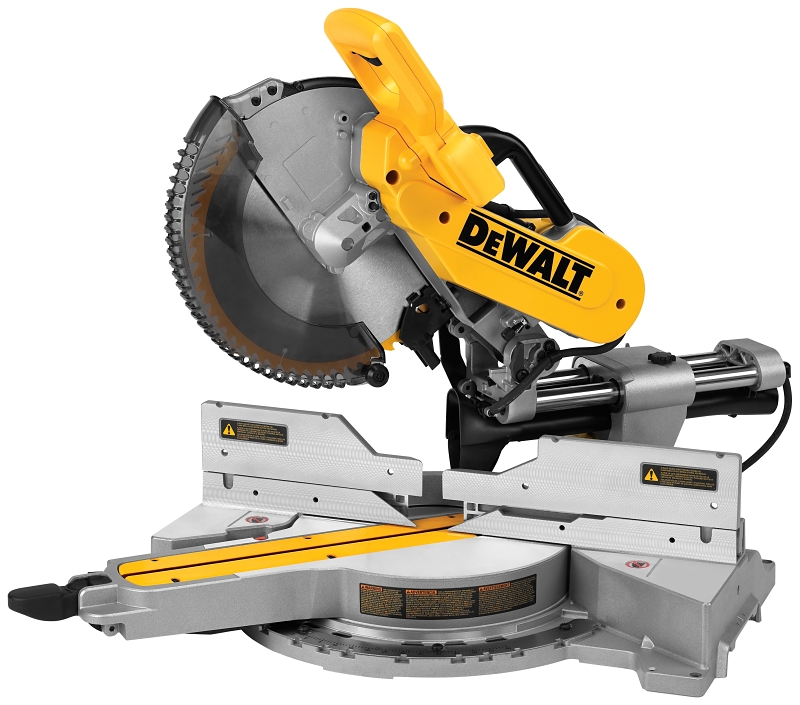

Dewalt DWS780 Slide Double Bevel Compound Miter Saw, 50 to 60 deg Miter, 15 A, 120 VAC, 5/8 or 1 in Arbor, 3800 rpm

Dewalt

Dewalt DWS780 Slide Double Bevel Compound Miter Saw, 50 to 60 deg Miter, 15 A, 120 VAC, 5/8 or 1 in Arbor, 3800 rpm

$1,213.19$1,213.19
Dewalt DWS780 Slide Double Bevel Compound Miter Saw, 50 to 60 deg Miter, 15 A, 120 VAC, 5/8 or 1 in Arbor, 3800 rpm
  • Amperage Rating: 15 A
  • Arbor/Shank Size: 5/8 or 1 in
  • Bevel Capacity: 49 deg Left/Right deg
  • Bevel Stops: 9 deg
  • Blade Size: 12 in Dia
  • Model #: DWS780
  • UPC #: 885911906913
  • SKU: 4036778

Your shopping list will be used for pickup in-store

Product Details

Dewalt Corded Miter Saw, Double Bevel, Sliding Compound, 120 V, 15 A, 12 in Diameter Blade, 40T Carbide Blade, 5/8 in, 1 in Arbor/Shank, 3800 rpm, 1 Speeds, 16 in Cutting Capacity, 90 deg, 0 - 50 deg Left, 0 - 60 deg Right Miter, 0 - 49 deg, 9 deg Bevel Stops, Trigger Control, Cam Locking, 23-1/2 in Overall Depth, 30-1/2 in Overall Width, UL Listed

Key Features

  • Integrated XPS cross cut positioning system provides adjustment free cut line indication for better accuracy and visibility
  • Powerful 15 A, 3800 rpm motor delivers extended power and durability
  • Super efficient dust collection system captures over 75% of dust generated
  • Tall sliding fences support crown molding up to 7-1/2 in nested and base molding up to 6-3/4 in vertically against the fence while easily sliding out of the way for bevel cuts
  • Exclusive back fence design cuts up to 2x16 dimensional lumber at 90 deg and 2x12 at 45 deg
  • Adjustable stainless steel miter detent plate with 10 positive stops improves productivity and ensures cutting accuracy
  • Miters 60 deg to the right and 50 deg to the left providing increased capacity
  • Oversized bevel scale makes bevel angle adjustments accurate and easy
  • Compact, lightweight design (56 lb) allows for easy transport and storage
  • Cam lock miter handle with detent override deliver quick and accurate miter angles, innovative gearbox and belt-drive design increases vertical cutting capacity

Item Specifications

Amperage Rating15 A
Arbor/Shank Size5/8 or 1 in
Bevel Capacity49 deg Left/Right deg
Bevel Stops9 deg
Blade Size12 in Dia
Blade Type40T Carbide
Cord Length6
Cutting Angle45, 50, 60, 90 deg
Cutting Capacity45 deg Bevel Cut Capacity 2 x 14 (2 x 16 With Back Fence) (Dim Lumber), 4 x 8 in 45 deg Miter Cut, 90 deg Cross-Cut Capacity 14 in (16 in with Special Setup), 90 deg Cross-Cut Capacity 2 x 14 in (2 x 16 With Back fence) (Dim Lumber)
Dimensions23-1/2 in L x 30-1/2 in W x 19-3/4 in D
Handle StyleTop
IncludesClamp, Dust Bag, Blade Wrench, Vertical Material Clamp
Locking TypeCam lock
Miter Capacity50 to 60 deg
Overall Depth32.77 in
Overall Height19-3/4 in
Overall Width30-1/2 in
Special FeaturesCorded
Specifications7-1/2 in Vertical Capacity/16 in Horizontal Capacity
Speed3800 rpm
StandardsUL Listed
TypeSlide, Double Bevel
Voltage Rating120 VAC
